Application Notes AN0018

SLT3G1 creating tasks, triggers and shortcuts

Nouveau paragraphe

Abstract:

A short illustration in video and text to demonstrate the test code edition, test sequence upload to the tester, and execution by ysing software and hardware triggers

Audience

  • Silicon validation engineers,
  • Application Engineers
  • Test technicians, operators
  • Teachers, graduate students


Creating and running elaborate test sequences

Required HW, FW, and SW tools

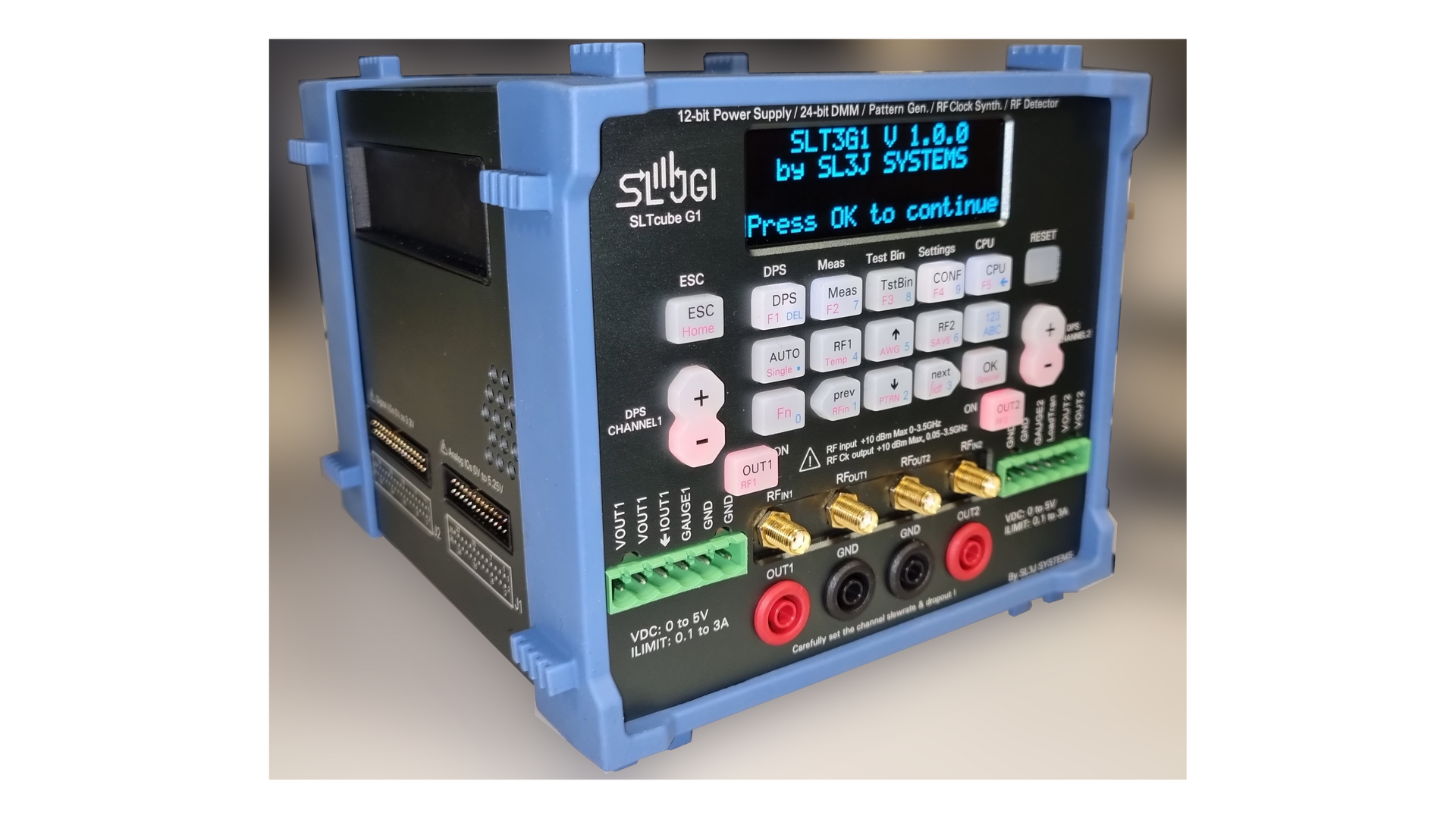

  • SLT3G1 all-in-one electronic tester
  • SLTcube01_FW release 0.9.5 or later
  • SLTcubeUX01  release 1.9.1 or later
  • SLRTOSmvcG1 release  1.9.1 or later

This blog section is edited for our partners and clients to provide insights about using our all-in-one electronic tester SLT3G1.

The video above provides a quick overview about how to create test sequences, load them to the tester, run them by using front panel buttons.

Step by step:

A test sequence is called a task.

You can edit tasks it through the the GUI interface of the SLT3G1 tester with your brower at http://127.0.0.1 (SCRIPT page).


In this illustration we developped 5 tasks named (FLASH, RAMP, LOOP1, LOOP2, STOP) and uploaded them to the tester from the SCRIPT page (see video).


A volatile task or script is then executed to map each task to front pannel buttons (F1, F2, F3, F4, F5).

          beginVolatileTask;

            setTaskShortcut 0 0 1 FLASH;

            setTaskShortcut 0 0 2 RAMP;

            setTaskShortcut 0 0 3 LOOP1;

            setTaskShortcut 0 0 4 LOOP2;

            setTaskShortcut 0 0 5 STOP;

            lcdDisplayText 999;

            lcdDisplayText 0 1 0 SLT3G1 DEMO;

            lcdDisplayText 0 3 0 TASK SHORTCUTS;

         endTask;


The code of RAMP task is listed in details in the figure below with comments for each instruction section in order to illustrate the code writing simplicity.


Advanced informationis available though the help pages of the GUI interface.

Task code driving the LED as a FLASH pulse

beginTask 0 0 0 FLASH;

ldoSetVoutClamp 4.0 0 1;

ldoSetIoutClamp 1.0 0 1;

ldoSetVout 3.0 0 1;

ldoEnableOutput 0 0 1;

delayms 100;

ldoDisableOutput 0 0 1;

endTask;

Ramps LED voltage up an down

beginTask 0 0 0 RAMP;

ldoSetVoutClamp 4.0 0 1;

ldoSetIoutClamp 1.0 0 1;

ldoSetVout 2.4 0 1;

ldoEnableOutput 0 0 1;

ldoSetVoutStep 0.050 0 1; set Vstep1

ldoIncrVout 0 0 1; incr Vout1

delayms 25;

ldoMeasVout 0 0 1;

setUsrFloatVar 3.2 0 1;

compareFloatGreater 0 xrVOUT1 xrVAR1;

jumpIf -5 0 0;

ldoDecrVout 0 0 1; decr Vout1

delayms 25;

ldoMeasVout 0 0 1;

setUsrFloatVar 2.4 0 2;

compareFloatLower 0 xrVOUT1 xrVAR2;

jumpIf -5 0 0;

ldoDisableOutput 0 0 1;

endTask;


Repeast FLASH task each 1 second

 beginTask 0 0 0 LOOP1;

lfTMRstop 0 1 0;

lfTMRsetCyclicTask 1 1 0 FLASH;

lfTMRstart 0 1 0;

endTask;

Repeast RAMP task each 1 second

beginTask 0 0 0 LOOP2;

lfTMRstop 0 1 0;

lfTMRsetCyclicTask 1 1 0 RAMP;

lfTMRstart 0 1 0;

endTask;

Stops running timer

 beginTask 0 0 0 STOP;

lfTMRstop 0 1 0;

endTask;


Maps task running to front panel buttons



beginVolatileTask;

setTaskShortcut 0 0 1 FLASH;

setTaskShortcut 0 0 2 RAMP;

setTaskShortcut 0 0 3 LOOP1;

setTaskShortcut 0 0 4 LOOP2;

setTaskShortcut 0 0 5 STOP;

lcdDisplayText 999;

lcdDisplayText 0 1 0 SLT3G1 DEMO;

lcdDisplayText 0 3 0 TASK SHORTCUTS;

endTask;



F1: Flash once

F2: Flash gradual

F3: Flash cyclic normal

F4: Flash cyclic gradual

F5: stop tmr

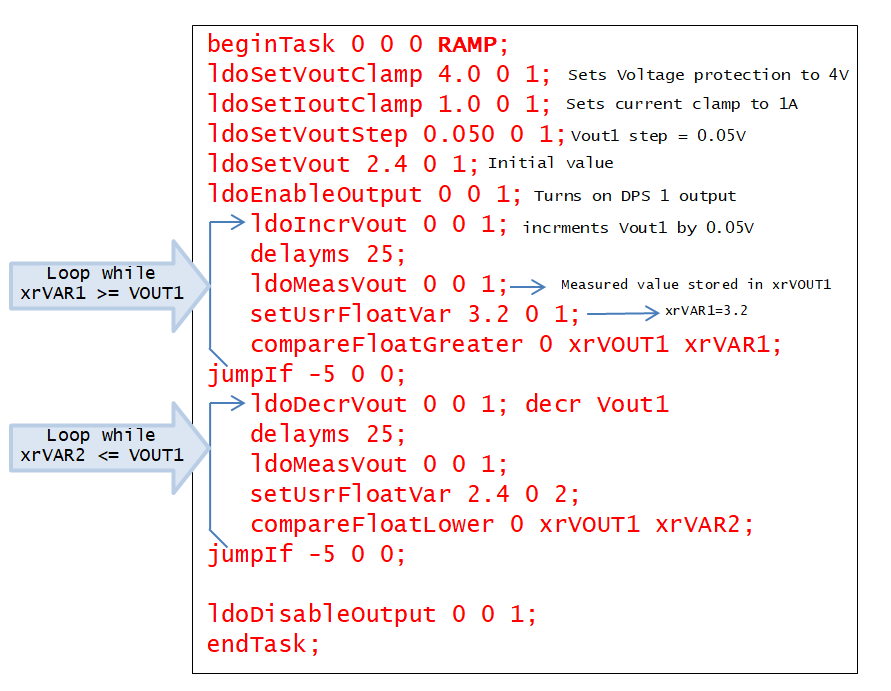

RAMP task Code illustrated
