SLRTOS
Real Time Operating System
- Rich instruction set
- Script based scheduler / Chron
- Embeded API / JSON server
- Embedded M2M Language
- Multiple Access Ports
- ...
Applications / Audience
- Remote Sensors, IoT
- Server Hub - Sensor
- Remote scripting
- Remote Experimentation
- Remote Instrument Control

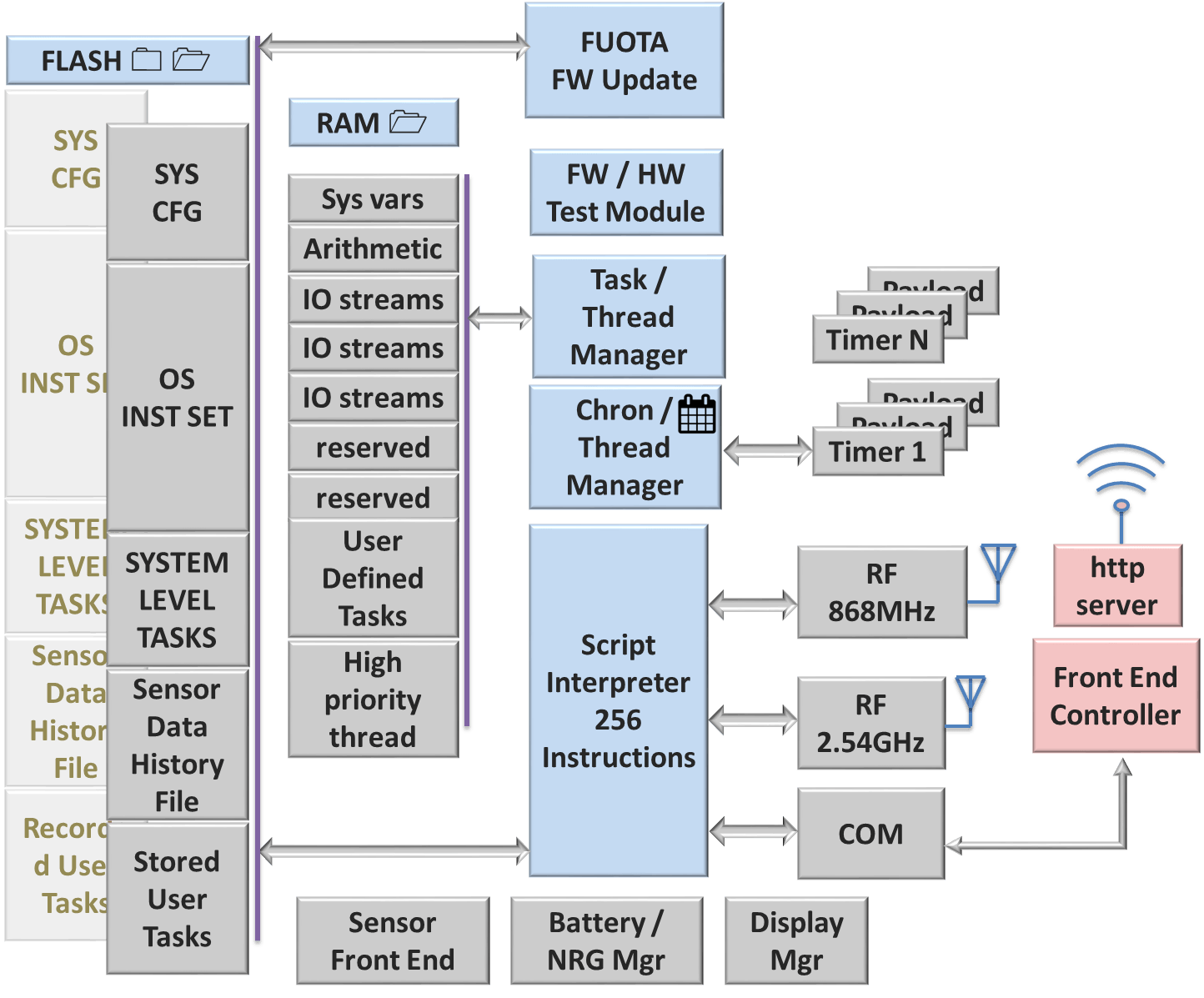

SLRTOS overview
SLTRTOS features
Prioprietary Architecture
- Omni-access instruction
- M2M oriented instruction set
- Free user scripting
- SSD file management
- User access to Advanced Chron managment
CHIPSETs
- Arm core M4 (nRF52™840)
- Risc (pic24 family)
Interpreters / server
- Omni access
- M2M private instruction set
- AT commands
- JSON server
- M2M private mode (compact)
FW update over the air

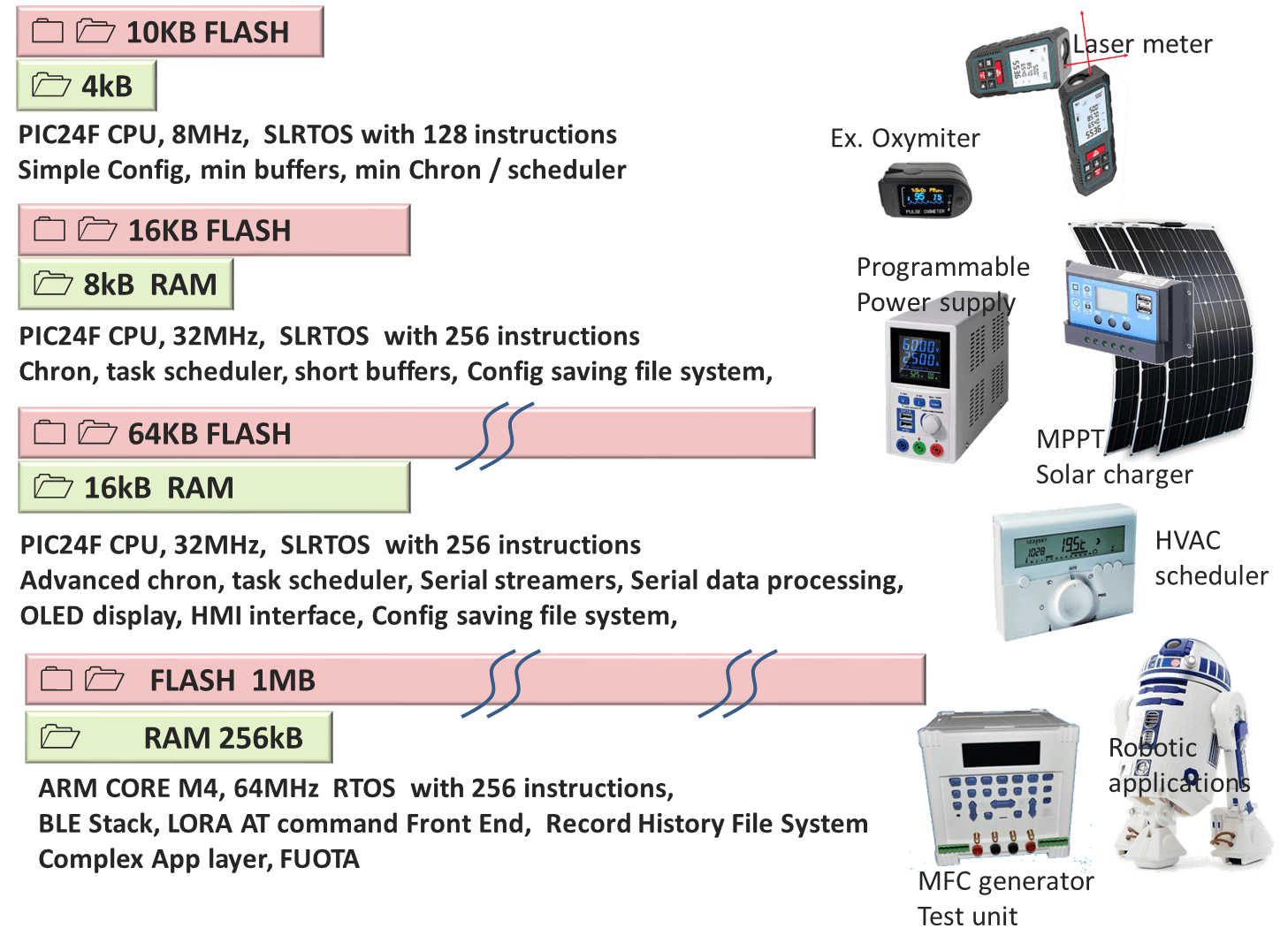

Memory Requirements
- Works with 4kb RAM and 10kb flash (mini version)
- Wireless and FUOTA 250kb RAM / 1Mb flash
SLRTOS connectivity
SLTRTOS connectivity
Short Range
- Subscription mode via GATT characteristics
- Full instruction Set/Get access
- Full scripting access
Short Range Hub mode
- Star mesh
- Slave pull
Long Range
- Static multi-mode payload
- Dynamic payload (in progress)
- Download full Script
M2M access
- Built in !!!
Data Server
- Built in JSON server
Required resources
