Silicon IP Portfolio

  • High reuse discipline
  • Scalable by design
  • Abstacttion / modeling
  • Versioning / bug tracking / Documentation
  • Non regression test
  • Unit Test coverage
  • Automated regeneration
  • Various level modeling
  • Abstact + Behavioral
  • Physical + Gate level


Our IP strategy

SL3J deployed a significant effort during 8 years do in Power Management Silicon IC Design and Design Methodolgy in the domain of High Swtching Frequency DCDC converters.


A significant portfolio of robust (Intellectual Property (IP) blocs has been packaged and isolated to be offered as scalabe and integrable IP for our tier 1 customers.


All our IPs benefit from a significant design effort to grant our customers with the following features

  • Abstract IP concept, exportable between processes
  • HDL model available VerilogA or Verilog for Analog and Mixed Signal IPs
  • Unit Test simulation scripts and test benches available for Analog and Mixed Signal IPs
  • Layout scalable using advanced Skill++ scripting ,  tcl, perl scripting
  • High quality documentation system
  • High quality versionning / bug tracking system inlucing documentation


SL3J SYSTEMS has developped a genuine Physical Design Kit with

  • Analog model libraries
  • Verilog model libraries
  • Bash, Perl, Python, Skill++ script libraries for Schematic, Layout, Simulation processing
  • Non regression Unit Test scripting (One Click runner)


New IPs (Browse our latest IP developments)

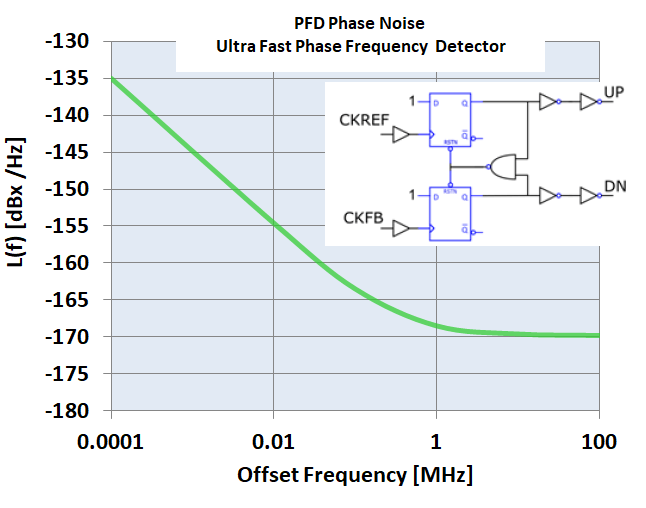

Low Noise PFD

22nm FDSOI Phase Frequency Detector

Our latest design of a 3-state Phase Frequency Detector shows state of the art phase-noise performance and a very high immunity to power supply noise.


This IP has been designed in both bulck 22nm CMOS and FDSOI 22nm nodes where it shows substantial improvement of phase noise.


Our PFD design exploits the extremely high speed propagation delays possible with 22nm FDSOI digital cells, knowing that we redesigned the D flip-flops in order to achieve 1 single gate propagation delay (27ps) and an extremely low phase noise.

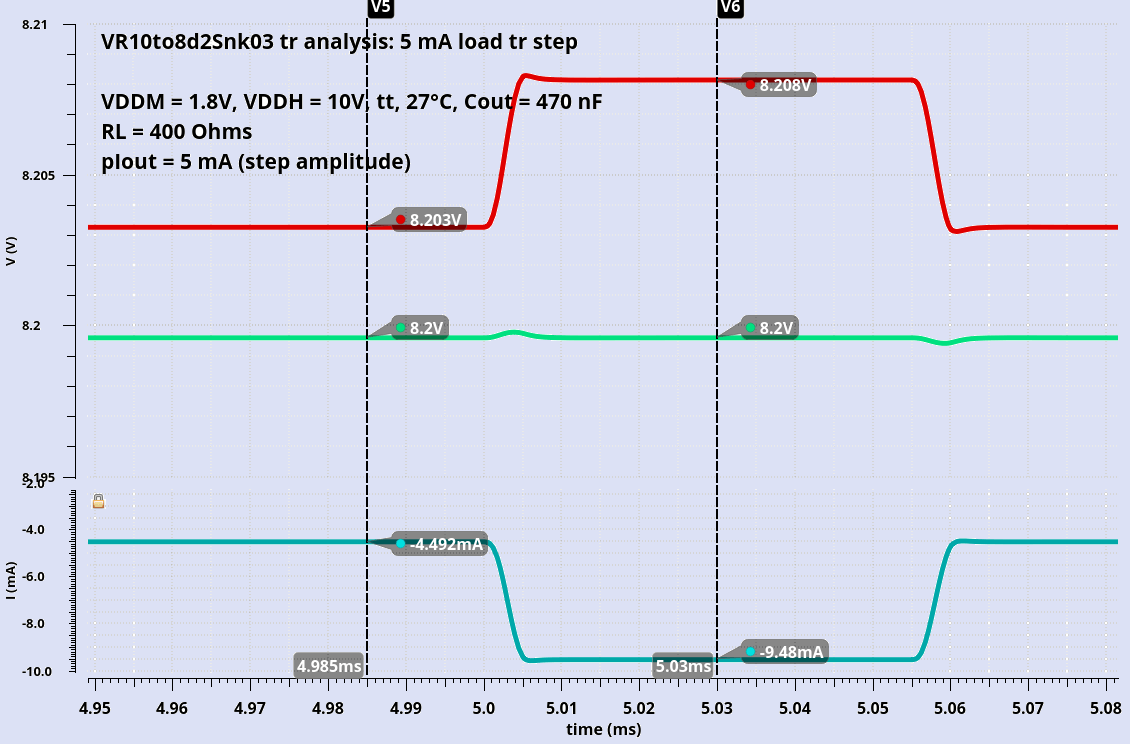

High Side Floating Voltage Regulator

High Side floating 1.8V Voltage Regulator


A floating 0-20V power domain high side 1.8V Voltage Regulator, specifically designed to power low consumption floating Analog IPs.

Deliveries available :

  • Process HV-BiCMOS 0.18um
  • VerilogA Model
  • Schematic, Layout, Abstract
  • Automated AC, DC, TRAN, MC test scripts (Ocean, Skill++)
  • Silicon proof

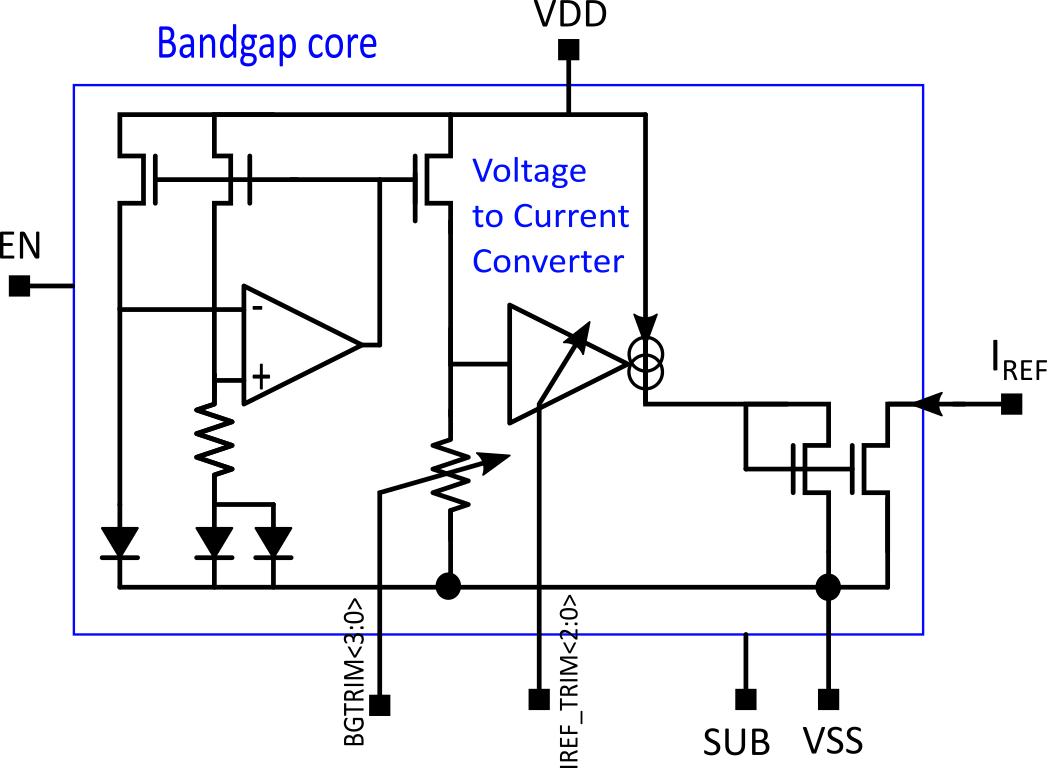

Bandgap 600mV

Bandgap 600mV and V/R current reference



Deliveries available :

  • Process BiCMOS 0.18um
  • VerilogA Model
  • Schematic, Layout, Abstract
  • Automated AC, DC, TRAN, MC test scripts (Ocean, Skill++)
  • Silicon proof

Silicon IPs & Design Services  (browse our portfolio of IPs, ICs, & design tools)

ASIC integration / Tapeout

ASIC integration / finishing

We possess a long track record as independent design center in the ASIC and PMIC design area.

We have developped a strong portfolio of IPs and design Tools since 2011 and performed 20+ ASIC/PMIC tapeouts:

  • HF switched PMIC (2X 16MHz Buck)
  • Neural Stim. ASIC (HV BiCMOS)
  • High res matrix ADC (130nm)
  • Wideband PLL (FDSOI 22nm)

This is possible thanks to our continuous training program offered to our engineers at all level of productivity.


Analog / Mixmode IPs

Analog / Mixmode IPs


  • 8-bit current steering DAC (0.25LSB, 10MHz)
  • Bandgap reference voltage providing 600mV +/-3%, 4-bit trim, non-buffered, 5.5V
  • Floating 1.8V LDO power +/-10V
  • 20GHz PFD (FDSOI)
  • Precision RC oscillator, 9MHz +/-1%, 5-bit trim, 1.8V
  • Rail-to-rail precision OTA (5.5V)


Contact us for detailed portfolio

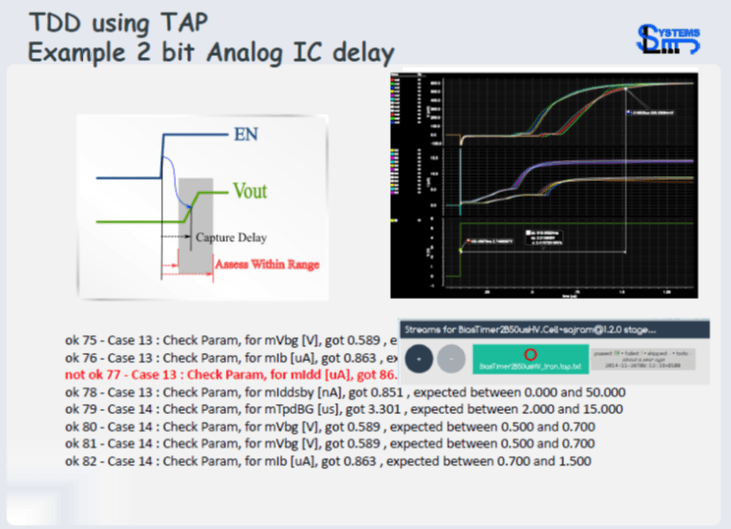

Unit Test PDK


Unit Test PDK



Fruit of 6 years of R&D, our PDK has been developped in SKILL++ / Ocean / VerilogA / Verilog / Perl / Bash to automate Analog & Mixed signal IP testing and characterization.


Our PDK enables a stronger ReUse strategy for much lower cost than many sophisticated GUI editors


SYNAV™

A Corporate Level

Design Collaboration Server

Browse SYNAV™ page

SYNAV™ :

A Corporate Level

Design Collaboration Server


SYNAV™ leads your company servers to handle your Product or IP Creation procedures, Specifications, and way beyond!


SYNAV™ is empowered by an abstract model to handle any type of Engineering Domain.


SYNAV™ is a light but powerful design collaboration server enabling live collaboration between design engineers during product development:

  • Live documentation
  • Version management
  • IP portfolio management
  • Design documentation
  • Team collaboration
  • IP test stream
