Product Details
Abstarct:

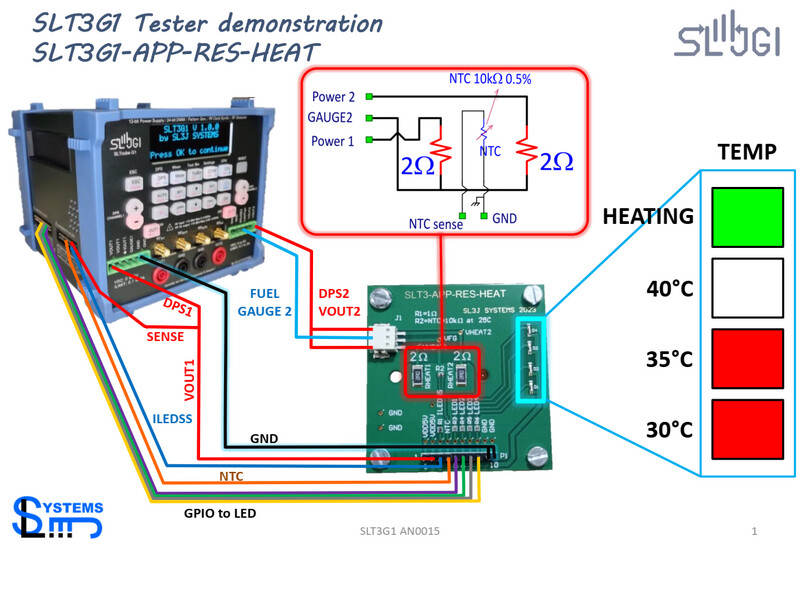

A simple PCB with 2 heating resistors and embeded NTC temperature sensors to be driven by SLT3G1 to demostrate simple tester capabilities
RES HEAT App Board with SLT3G1 connector ACC-150 soldered
Audience:
PE, AE, test, and Field engineers, HW designers, FW developpers, Graduate students (EE, Embedded Systems, IoT)
Description:SLT3-APP-RES-HEAT-X02
is a simple hardwar embedding 2 power resistors (2Ω 1W 2512) connected to power ground connection with a temperature sensing varistor (a 10kΩ NTC) placed in the middle. It also embeds 3 red LEDs and 1 green LED for general purpose flag display.

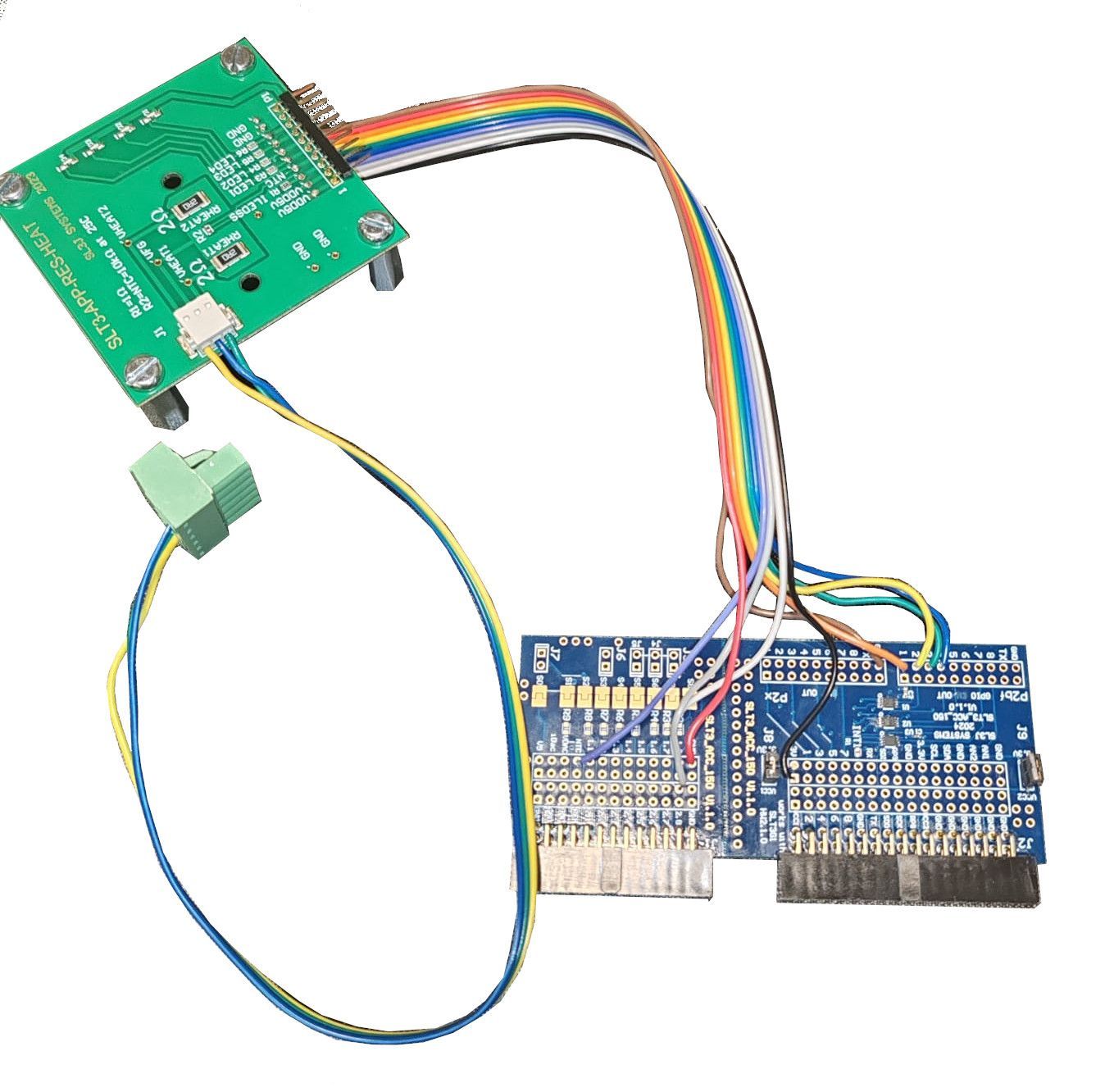

This version of the product (X02) is assembled with an equipped Front-End connector as well as a 6POS power terminal plug SLT3-ACC-X006-02 which transforms the bare product SLT3-APP-RES-HEAT-X01 into a plug and play application board for immediate use with the SLT3G1. This prevents erros in wiring and connector signal mapping to the tester.
SLT3-APP-RES-HEAT-X02 is used for initiation trainings of beginners to get started with the use of SLT3G1 tester and get started with stimulation scripts, measurement functions, edge calculation and create pass fail test scripts.
